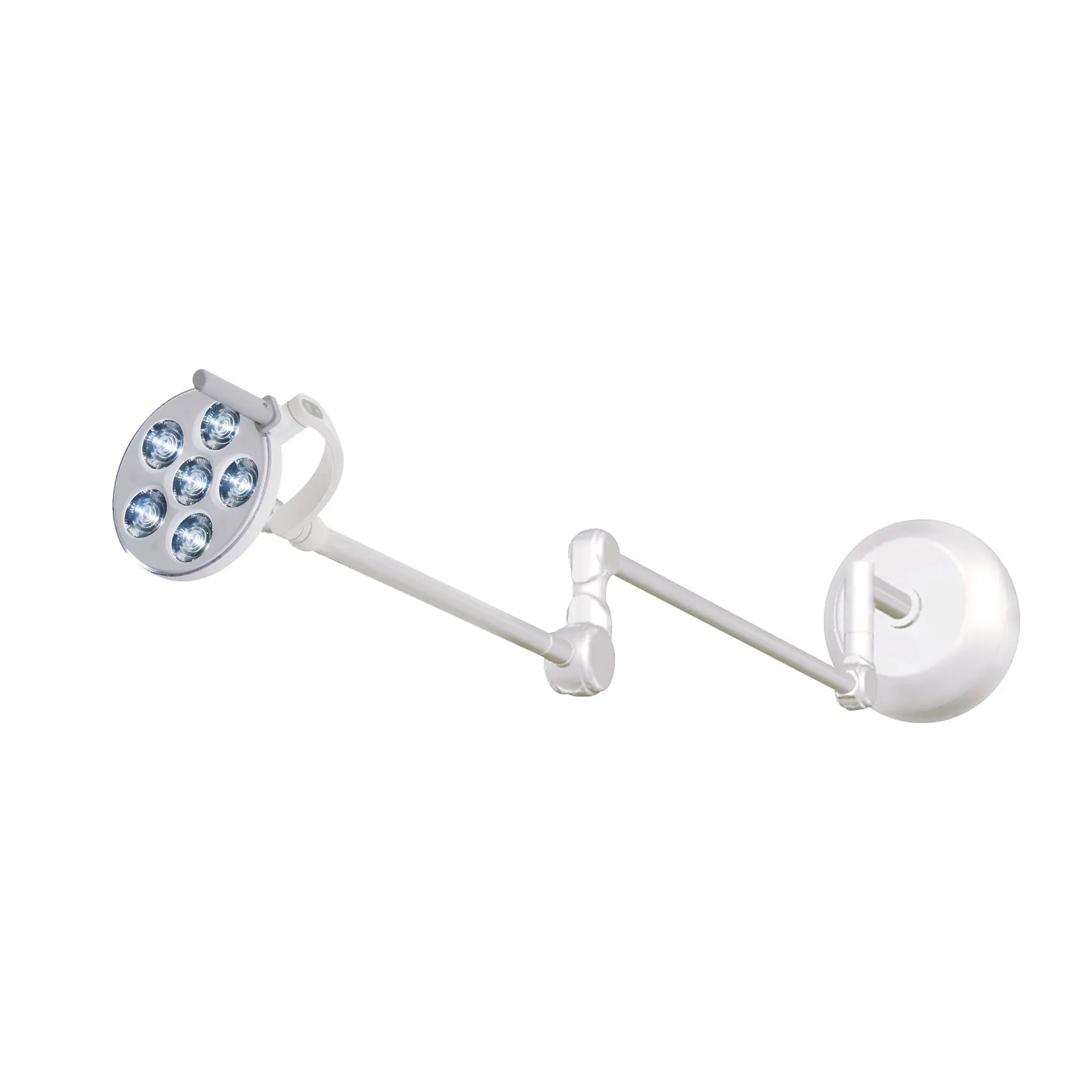

Waldmann TRIANGO 60-3 W | 60,000 Lux | Adjustable Color Temperature

The Waldmann TRIANGO 60-3 W is the premium wall-mounted version of the compact TRIANGO 60 series. Delivering 60,000 lux at 1 meter, this model is distinguished by its 3-stage adjustable color temperature, allowing clinicians to toggle between 3700K, 4300K, and 4700K. This capability ensures that various tissue types and anatomical structures are viewed under the most effective spectral conditions.

By utilizing a permanent wall-mount configuration, the 60-3 W provides surgical-grade color rendering while maintaining a zero-floor-footprint design, making it ideal for high-traffic procedure rooms and narrow clinical bays.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: TRIANGO 60-3 W (Wall Version)

• Light Intensity: 60,000 Lux at 1 meter

• Color Temperature: Adjustable (3700K / 4300K / 4700K)

• Dimming: Continuous (Infinitely dimmable via membrane keypad)

• Illumination Field: 7-inch (18 cm) fixed diameter

• Mounting: Wall Mount with heavy-duty articulated spring arm

Technical & Clinical Advantages

• Tri-Color Spectral Tuning: The "60-3" engine allows the practitioner to customize the light tone to enhance visual contrast based on the specific procedure:

  • 3700K (Warm): Ideal for skin surface examinations and reducing glare on pale surfaces.

  • 4300K (Neutral): The standard for general minor surgery and wound care.

  • 4700K (Cool): High-contrast light optimized for deep-tissue visualization and intricate vascular work.

• Infinitely Dimmable Control: The intuitive membrane keypad provides stepless dimming, allowing for precise intensity adjustments. This ensures the perfect balance of brightness while eliminating distracting reflections from stainless steel surgical instruments.

• Diamond Cluster Optics: This specialized lens array ensures a perfectly homogeneous light field. It eliminates "hotspots" and provides uniform brightness across the entire 18 cm field, ensuring no loss of detail at the periphery of the site.

• Space-Efficient Wall Integration: The articulated spring arm offers an extensive reach across the exam or surgical table but folds tight against the wall when not in use. This preserves the workflow in 2026 clinics where floor space is at a premium.

• Advanced Thermal Management: High-efficiency LEDs and a minimalist housing design ensure that heat is dissipated away from the patient and practitioner, maintaining a cool working environment and preventing tissue desiccation.

Ideal Applications

• Dermatology & Aesthetics: Adjustable color temperatures are essential for identifying subtle skin lesions and ensuring natural results in cosmetic procedures.

• Specialized Minor Surgery: Ideal for plastic surgery, urology, and gynecology suites requiring high-contrast fixed lighting.

• Veterinary Clinics: A versatile, space-saving solution for dental suites and soft-tissue surgical bays.

• Dental & Oral Surgery: High-intensity, color-accurate light for precise oral diagnostics and interventions.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the 60-3 light head with integrated color control, articulated spring arm, and heavy-duty wall mounting bracket.

• Hygiene: The sealed, closed-housing construction (IP 43) prevents the ingress of dust and fluids, supporting rapid and thorough disinfection with standard medical wipes.

• Maintenance: Maintenance-free LED technology with a lifespan exceeding 50,000 hours, eliminating the cost and downtime of bulb replacements.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision optics and spring-arm calibration remain in perfect alignment during transit.

• Fast Dispatch: Typically ships within 1–2 business days.
