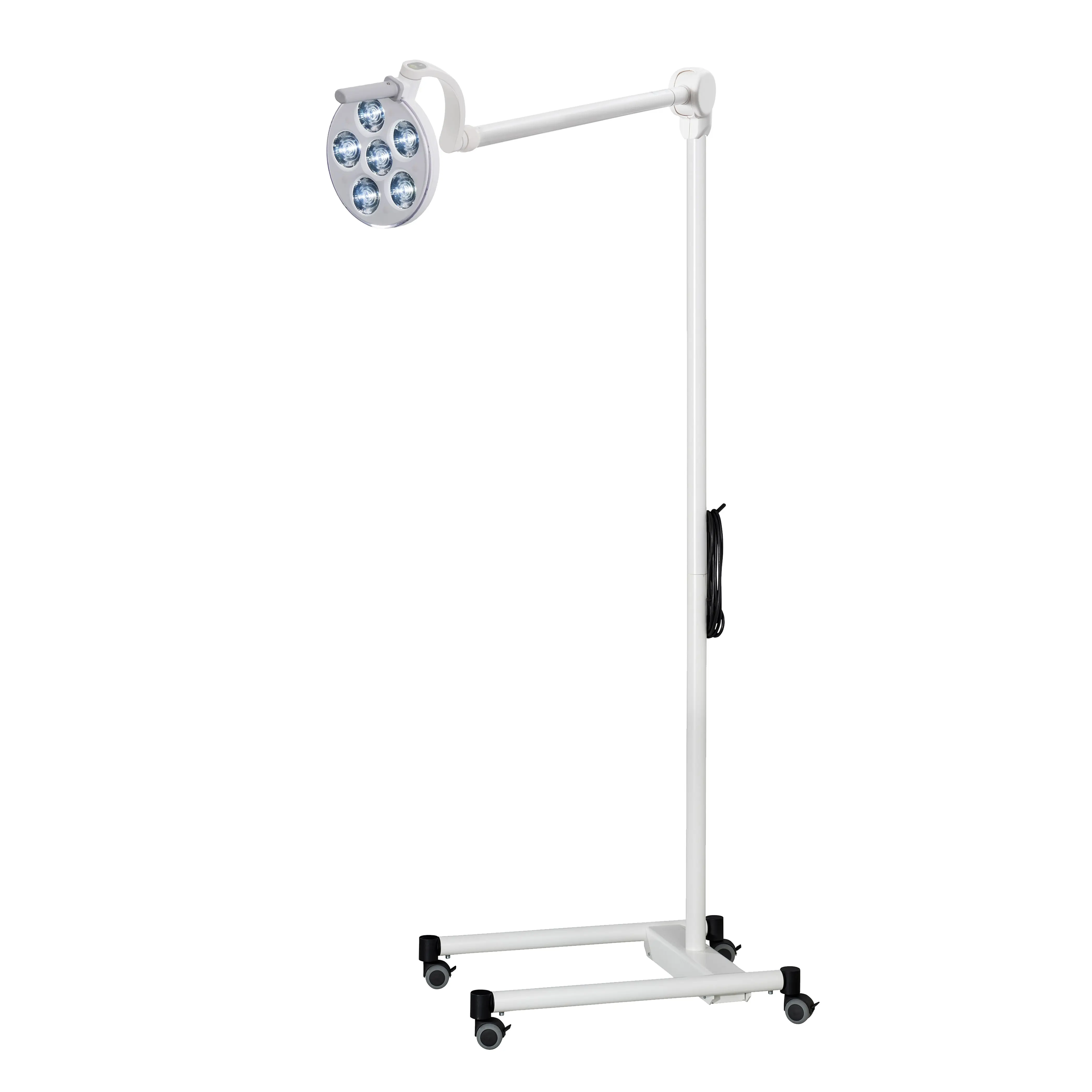

Waldmann TRIANGO Fokus 60-1 F | 60,000 Lux | Mobile Floor Stand

The Waldmann TRIANGO Fokus 60-1 F is the most versatile mobile light in the TRIANGO 60 series, combining professional surgical-grade optics with a compact, easy-to-maneuver floor stand. Delivering 60,000 lux at 1 meter, this "Fokus" version allows clinicians to mechanically adjust the light field diameter between 18 cm, 23 cm, and 28 cm.

This adjustable focal range, combined with a high-contrast 4700K cool-white spectrum, makes it the 2026 standard for mobile units used in dermatology, gynecology, and high-tier veterinary surgery where different procedure depths require tailored illumination.

Key Specifications

• Manufacturer: Waldmann (Derungs)

• Model: TRIANGO Fokus 60-1 F (Mobile Version)

• Light Intensity: 60,000 Lux at 1 meter

• Adjustable Field of Light: 18 cm / 23 cm / 28 cm (approx. 7" to 11")

• Color Temperature: Fixed 4700 K (Cool White)

• Color Rendering Index (CRI): $R_a > 93$

• Dimming: Continuous (Infinitely dimmable via membrane keypad)

• Configuration: Mobile Floor Stand with medical-grade casters

Technical & Clinical Advantages

• Fokus Mechanical Precision: The integrated focusing mechanism enables the practitioner to concentrate the light field to 18 cm for deep-cavity work or expand it to 28 cm for broad surface visualization. This adaptability ensures optimal light density regardless of the surgical site's size or depth.

• Diamond Cluster Optics: This advanced lens technology ensures a perfectly homogeneous light field across all focal settings. It eliminates the "hotspots" common in standard LED systems, providing consistent brightness from the center to the edge of the light field.

• Continuous Dimming Control: Equipped with a high-durability membrane keypad, the light offers stepless, continuous dimming. This allows for precise intensity adjustments that eliminate glare on metallic instruments and reduce eye fatigue during long sessions.

• Balanced Spring Articulation: The high-performance spring-arm system provides effortless movement and high positional accuracy. The light head remains perfectly stable once positioned, yet can be adjusted with one hand to follow the clinical workflow.

• High-Contrast 4700K Visualization: The 4700K color temperature is specifically chosen for its ability to provide clear, high-contrast visualization. With a CRI of 93+, it ensures accurate color representation for identifying fine anatomical structures and assessing wound health.

Ideal Applications

• Specialty Outpatient Procedures: Ideal for dermatology (biopsies/MOHS), plastic surgery, and urology suites.

• Veterinary Specialists: A premier choice for veterinary clinics requiring a mobile, high-intensity light with adjustable focal depths for dental or soft-tissue surgery.

• Gynecology & Urology: Provides clear, focused visualization for diagnostic exams and minor outpatient procedures in various treatment bays.

• Emergency & Urgent Care: Mobile flexibility allows for rapid deployment to any room for suturing or localized trauma management.

Condition & Quality Assurance

• Status: NEW — Factory Direct Quality.

• Integrity: Includes the Fokus 60-1 light head, mobile floor stand, articulated spring arm, and integrated membrane control keypad.

• Protection: Rated IP 43 for protection against dust and splashing liquids, supporting safe operation in procedural environments.

• Maintenance: Features maintenance-free LED technology with a lifespan exceeding 50,000 hours, eliminating the need for bulb replacements and reducing long-term costs.

Shipping & Handling

• Secure Logistics: Shipped in specialized reinforced packaging to ensure the precision Fokus optics and the balanced spring arm arrive in perfect calibration.

• Fast Dispatch: Typically ships within 1–2 business days.
