Stryker 7203-226-000 System 7 Dual Trigger Adjustable Large Collet 3.0-4.2mm

• Model: 7203-226-000 (Stryker)

Fits Up To The Following Pin Sizes:

• S 3.0-3.4mm
• M 3.4-3.8mm
• L 3.8-4.2mm

These surgical instruments have been previously used and show visible signs of wear consistent with their prior usage. Despite these signs, they remain in a usable condition, suitable for continued medical procedures.

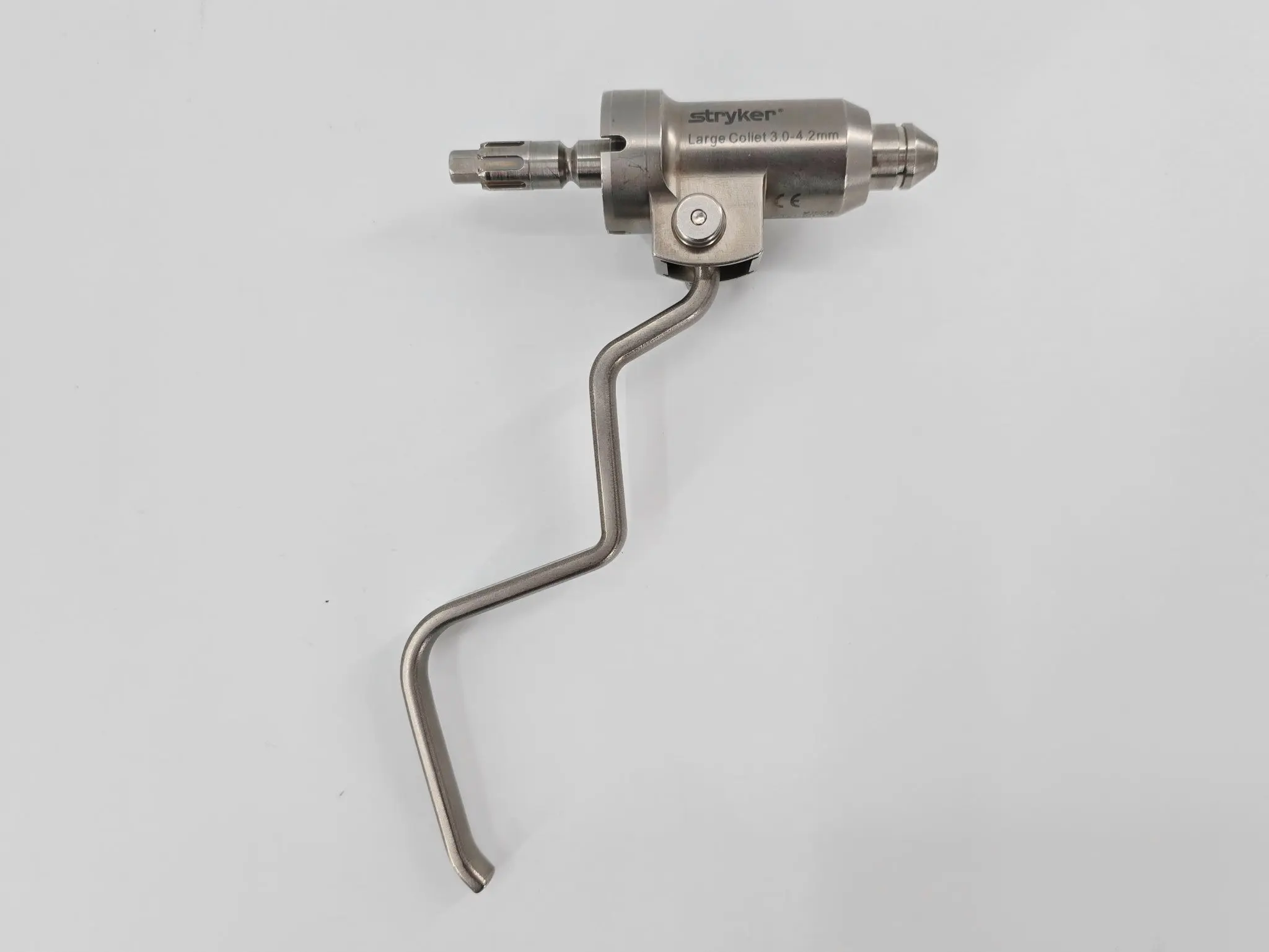

The 7203‑226‑000 is a heavy-duty, dual-trigger collet attachment specifically engineered for Stryker System 7 dual-trigger rotary handpieces. It accommodates a wide range of large wires or pins (3.0–4.2 mm) by using a simple pre-adjust knob that sets the diameter to Small (3.0–3.4 mm), Medium (3.4–3.8 mm), or Large (3.8–4.2 mm). The collet securely grips materials when the surgeon engages the clamping lever and trigger—providing reliable control during drilling, pin insertion, or extraction in orthopedic or veterinary procedures.

Designed with precision, the collet measures approximately 112 mm in length, 27.4 mm in diameter, and weighs around 203 g, aligning closely with Stryker’s documented specs. It is fully compatible with System 7 single- and dual-trigger handpieces (model 7205‑000‑000) and integrates seamlessly with Stryker’s Safe/Forward/Reverse function and drill/ream modes as detailed in their IFU manual.
