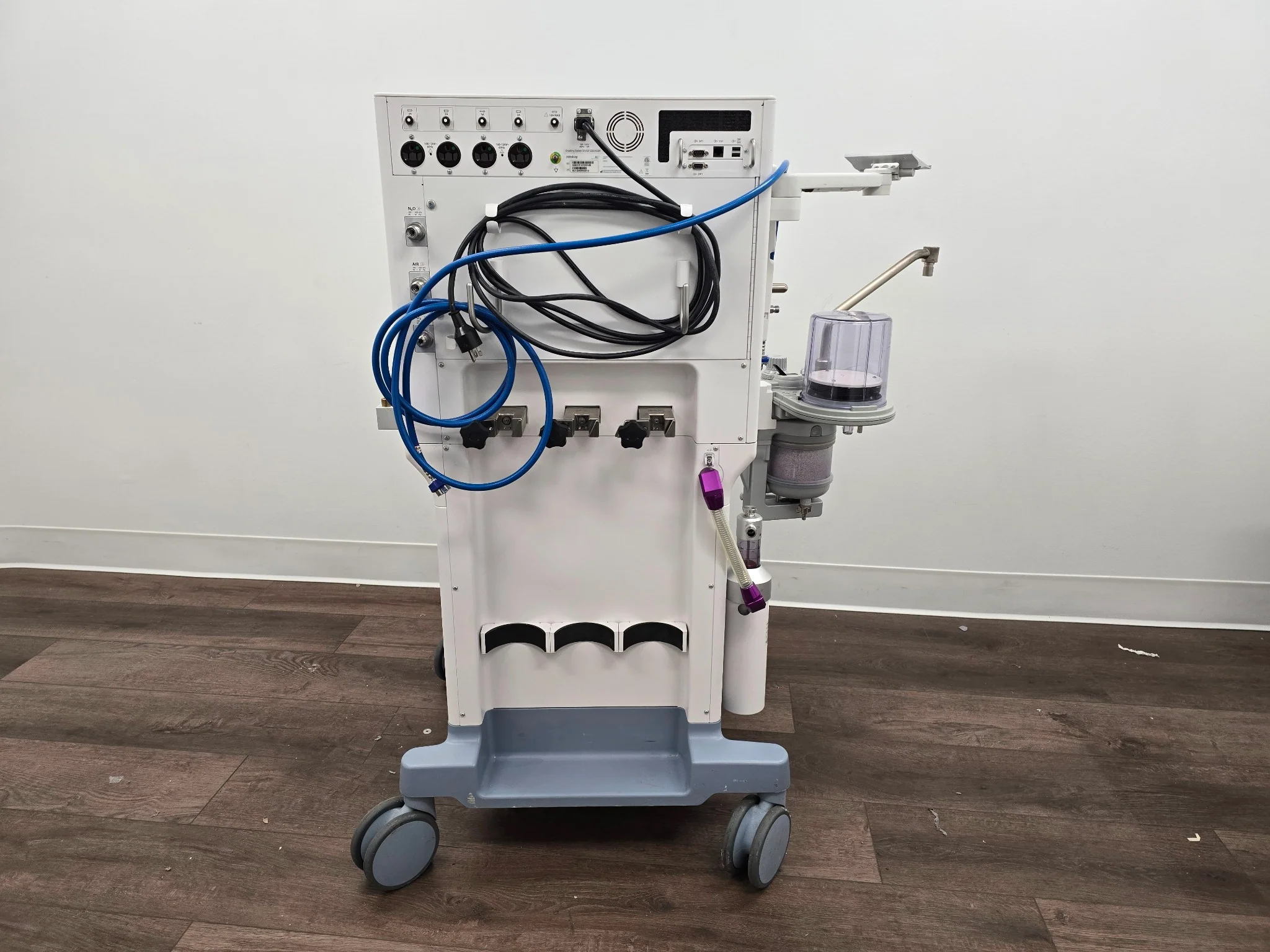

Mindray A5 Anesthesia System (Model: Q0631F-01000-00) with AnaeSight™

The Mindray A5 is a premium anesthesia workstation engineered for the modern, data-driven operating room. This system stands out for its Universal Ventilation capabilities, offering advanced modes typically reserved for intensive care ventilators, such as SIMV-PC, CPAP/PS, and PCV-VG. These modes allow clinicians to maintain precise tidal volumes even as lung compliance changes during laparoscopic surgery or position shifts. The intuitive 15-inch color touchscreen interface minimizes "menu diving," allowing for rapid adjustments to fresh gas flow and ventilation parameters in high-pressure clinical scenarios.

Equipped with a Warmed Breathing System, the A5 significantly reduces internal condensation, protecting the high-precision flow sensors and ensuring patient gas remains at an optimal temperature. For complex airway management, the system includes a high-pressure O₂ port for jet ventilation and is compatible with High-Flow Nasal Cannula (HFNC) options to extend safe apneic oxygenation time. With HL7 connectivity, the A5 integrates seamlessly into your facility's EMR for automated, accurate perioperative charting.

System Specifications & Features

• Model: Q0631F-01000-00 (Serial: EJ-2A002213)

• Software Version: 02.12.00

• Breathing System S/N: A201206040284

• Ventilation Modes: Manual, VCV, PCV, PCV-VG, SIMV-VC, SIMV-PC, CPAP/PS

• Interface: 15" Color Touchscreen with Digital Flow Tubes

• Specialized Features: Warmed Breathing System, AnaeSight™ Platform, Auxiliary O₂/Air Flow Meters

• Connectivity: HL7 for EMR Integration

• Dimensions: 55" (H) x 41" (W) x 29" (D)

Clinical & Operational Advantages

• Lung Protective Ventilation: PCV-VG mode ensures the safety of volume-controlled ventilation with the pressure-limiting benefits of pressure control—ideal for delicate neonatal or compromised adult lungs.

• AnaeSight™ Integration: Centralizes control over anesthesia, monitoring, and infusion, reducing the cognitive load on the anesthesiologist and improving patient safety.

• Apneic Oxygenation Support: The high-flow O₂ capabilities assist in managing "difficult airway" patients, providing extra time for intubation without desaturation.

• Ergonomic Workspace: Features a large stainless steel work surface, robust casters with a central brake system, and integrated cable management to maintain a clean OR environment.

Condition & Testing Status

• Status: Used – Power On Tested.

• Functional Assessment: This unit successfully powers on and completes its internal system boot/self-check process without error codes. The 15" touchscreen is responsive and the digital interface is clear.

• Technical Note: Only a basic "Power-On" assessment has been performed. No clinical testing, gas calibration, or vapor pressure testing has been conducted.

• Regulatory Note: This system is sold in its current condition. It must be inspected and certified by a qualified Biomedical Technician for calibration and gas-leak testing prior to any clinical or patient use.

Warranty

• ✔ Primis 90-Day "DOA" Guarantee

  We guarantee the Mindray A5 will power on and boot to the main screen upon arrival. If the unit fails to initialize or the screen is non-functional, Primis Medical will provide a full refund or return service.

What’s Included

• (1) Mindray A5 Anesthesia Workstation (Model Q0631F-01000-00)

• (1) Warmed Breathing System (Integrated)

• (1) Power Cord

Shipping

• Freight Shipping Required.

• Ships within 2–4 business days via a specialized medical equipment courier.

• The unit will be professionally crated and secured to a pallet to protect the sensitive internal bellows and 15" touchscreen during transit.
