Karl Storz C-MAC® Pediatric D-Blade | 8401HXP

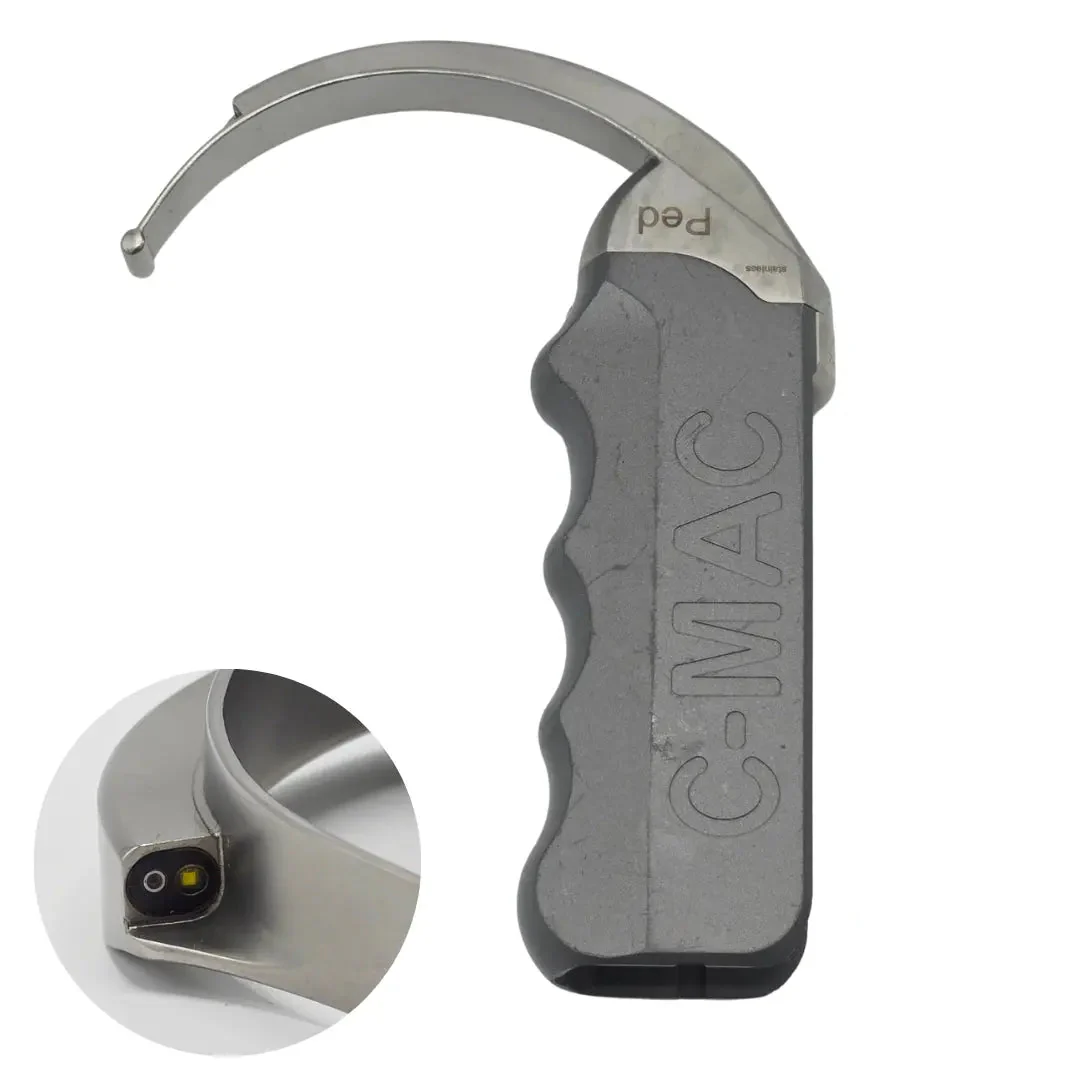

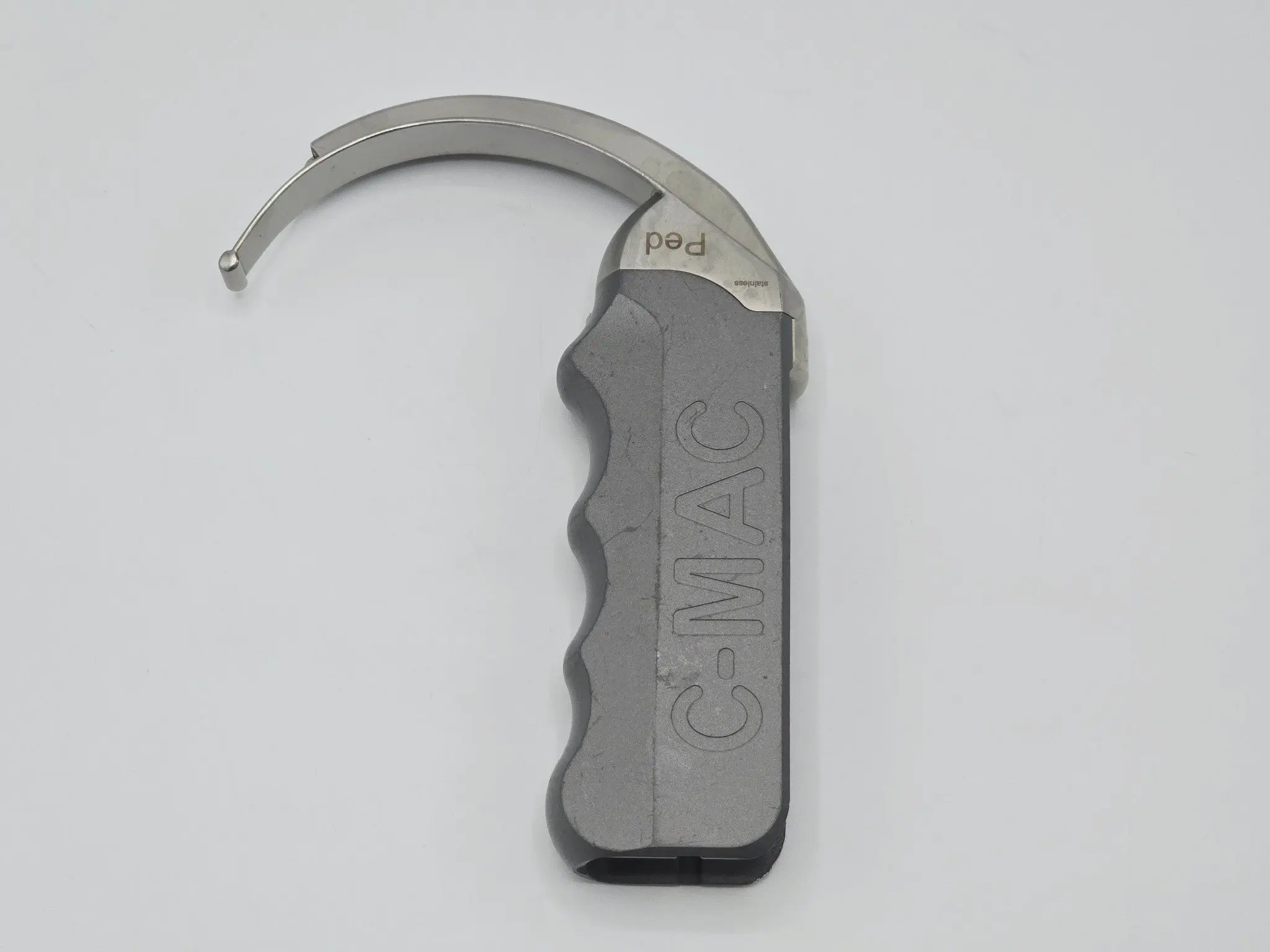

The Karl Storz 8401HXP is a specialized video laryngoscope blade engineered for the most challenging pediatric airway scenarios. Unlike standard Macintosh or Miller blades, the D-Blade features a unique, hyperangulated (half-moon) shape designed specifically to "see around the corner" in patients with difficult anatomy.

This blade is the clinical gold standard for pediatric patients (typically weighing between 22–55 lbs) who present with anatomical disorders such as Down syndrome, Pierre Robin sequence, or Crouzon syndrome. By utilizing advanced CMOS technology, the 8401HXP provides a high-resolution, wide-angle view of the glottis, even when the oral aperture is restricted or the larynx is positioned highly anteriorly.

Key Performance Features

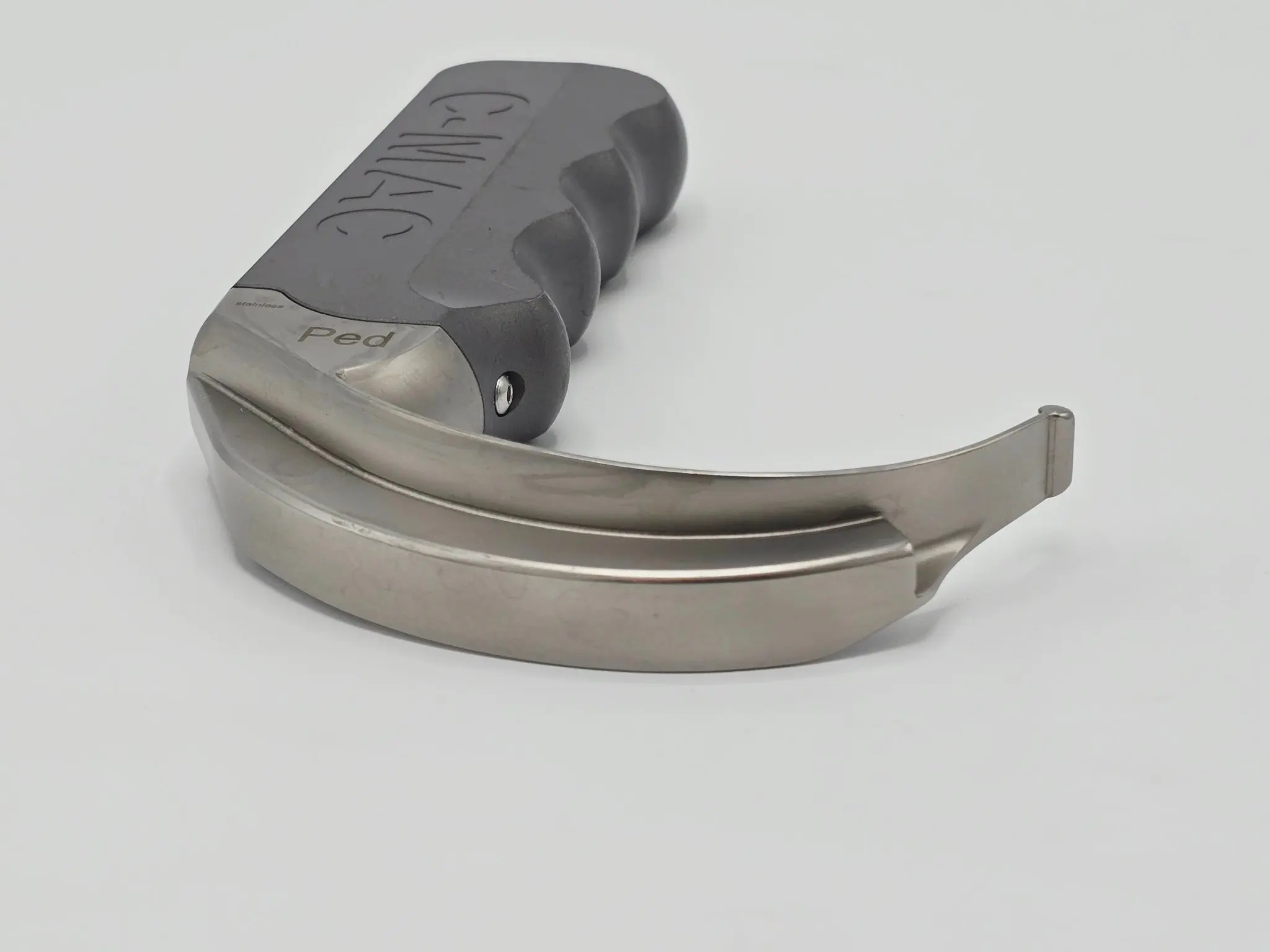

• Hyperangulated D-Blade Geometry: The elliptically tapered, highly curved profile allows for superior glottic visualization in "can't-see" scenarios where direct laryngoscopy is impossible.

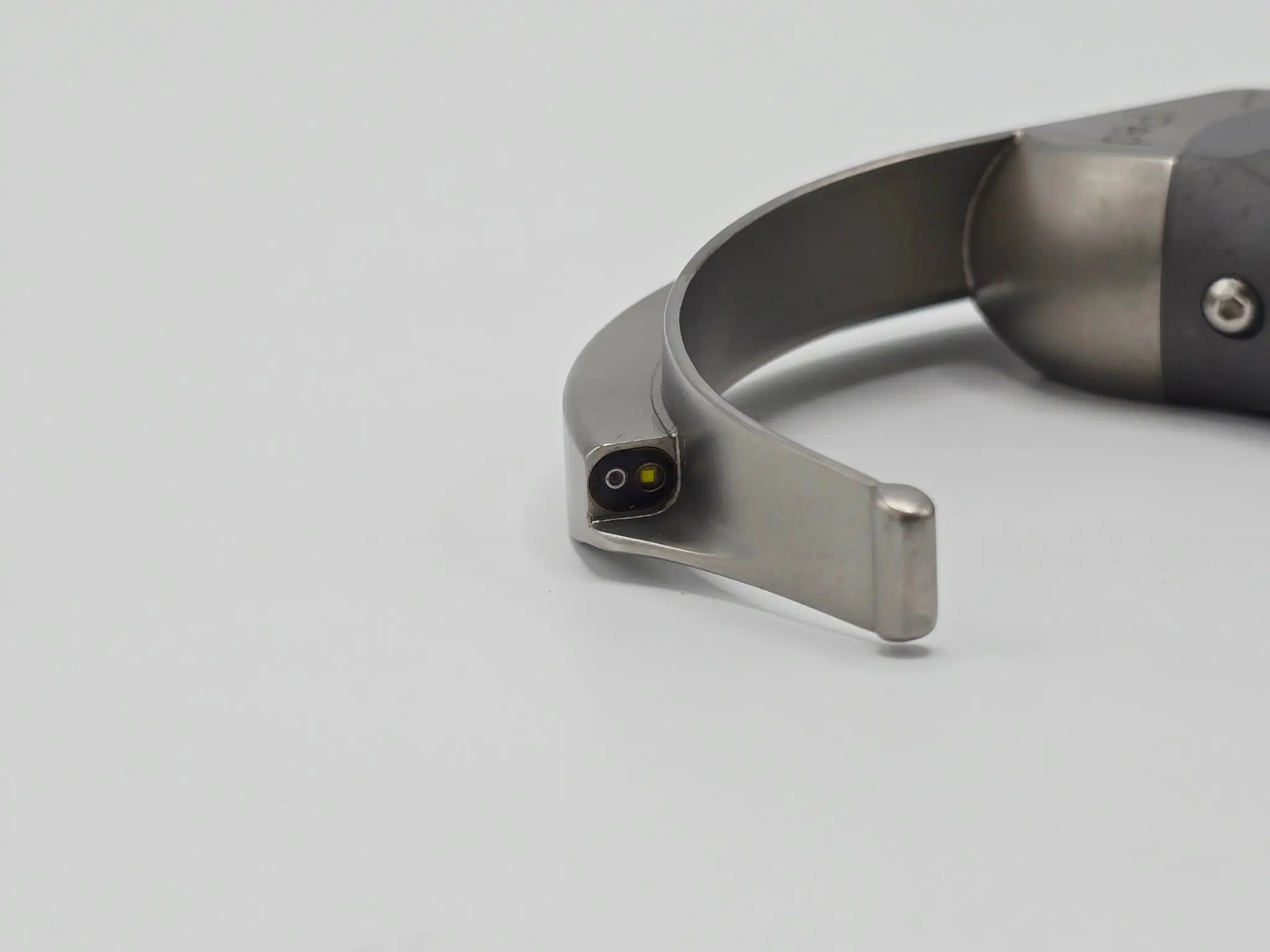

• CMOS Visualization Technology: Features an integrated digital sensor at the distal tip that delivers a 70° to 80° diagonal field of view, ensuring the surgeon can identify anatomical landmarks with crystal clarity.

• Pediatric-Optimized Dimensions: With a working length of 76 mm and a distal width of only 13 mm, this blade is perfectly proportioned for the small oropharyngeal cavity of a child.

• Low-Profile Stainless Steel: The thin, robust metal construction minimizes the displacement of soft tissue, providing more room for endotracheal tube passage in limited spaces.

• High-Intensity LED Illumination: Dual-LED light sources provide homogenous, cool-white illumination, preventing the shadows or "fogging" that can obscure the view during critical airway maneuvers.

Technical Specifications

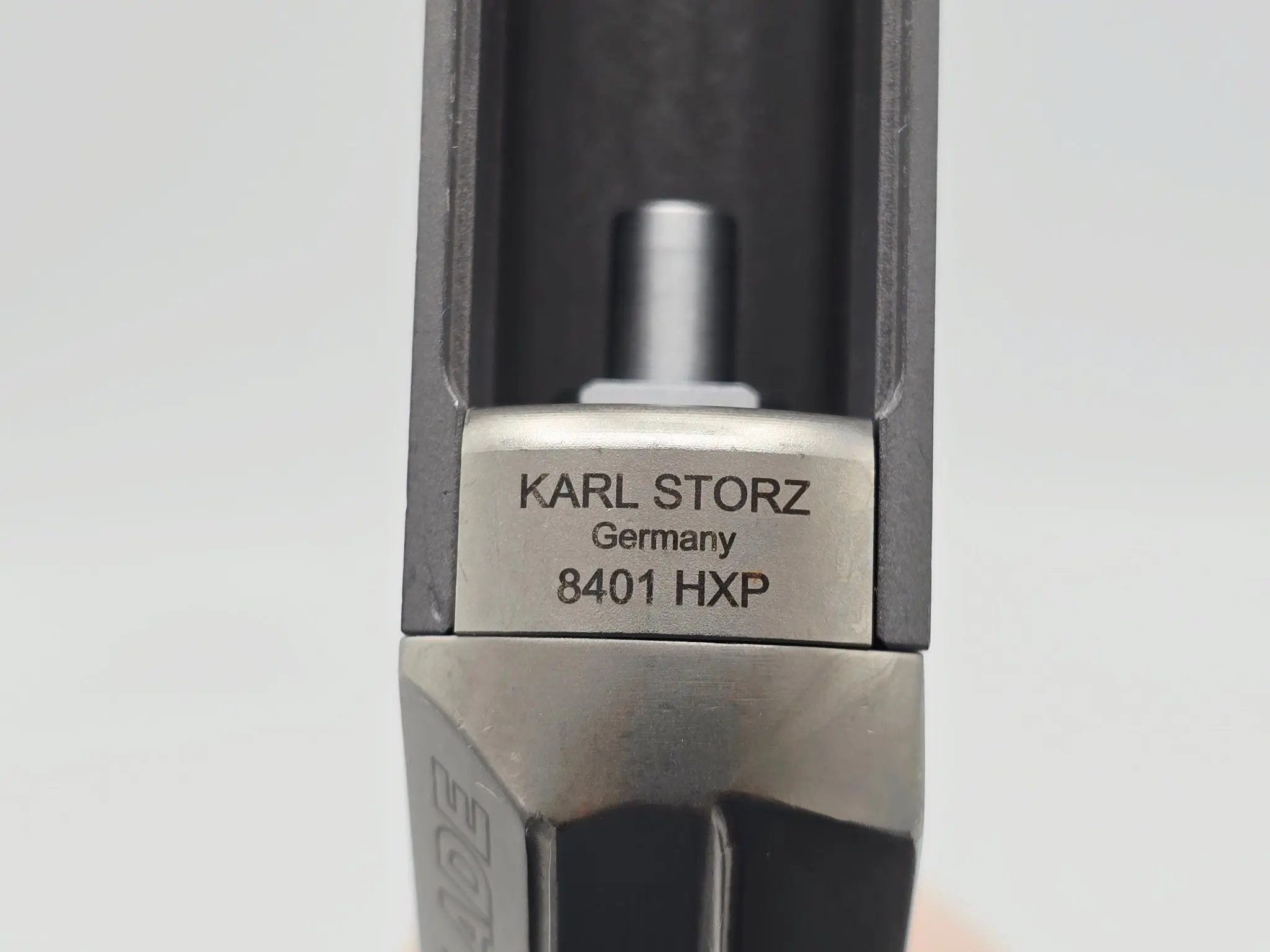

• Manufacturer: Karl Storz (Made in Germany)

• Model: 8401HXP

• Series: C-MAC®

• Blade Type: Pediatric D-Blade (Hyperangulated)

• Working Length: 76 mm

• Distal Width: 13 mm

• Technology: CMOS with distal LED illumination

• Material: Surgical-grade Stainless Steel

Clinical & Institutional Advantages

• Superior Difficult Airway Management: The D-Blade is specifically validated for Grade III and IV difficult laryngoscopy, closing the gap between standard video laryngoscopy and flexible fiberoptic intubation.

• Reduced Anatomical Trauma: The hyperangulated shape requires less "levering" against the teeth and soft tissues compared to standard blades, reducing the risk of dental injury or airway edema.

• Modular "Plug & Play" Integration: Sourcing this "Excellent Condition" 8401HXP allows facilities to equip their C-MAC® systems with specialized pediatric capabilities without the expense of an entire new platform.

Ideal Applications

• Pediatric Anesthesiology: Management of known or unexpected difficult airways in children.

• Neonatology & NICU: Intubation of small pediatric patients with craniofacial anomalies.

• Pediatric ER & ICU: Rapid Sequence Induction (RSI) where anterior laryngeal positioning is suspected.

• Residency Training: A vital tool for demonstrating pediatric airway anatomy in high-fidelity simulation environments.

Condition & Quality Assurance

• Status: Used — Excellent Condition.

• Optical Integrity: The distal CMOS lens and LED windows are verified clear and free of scratches, ensuring optimal light transmission and image quality.

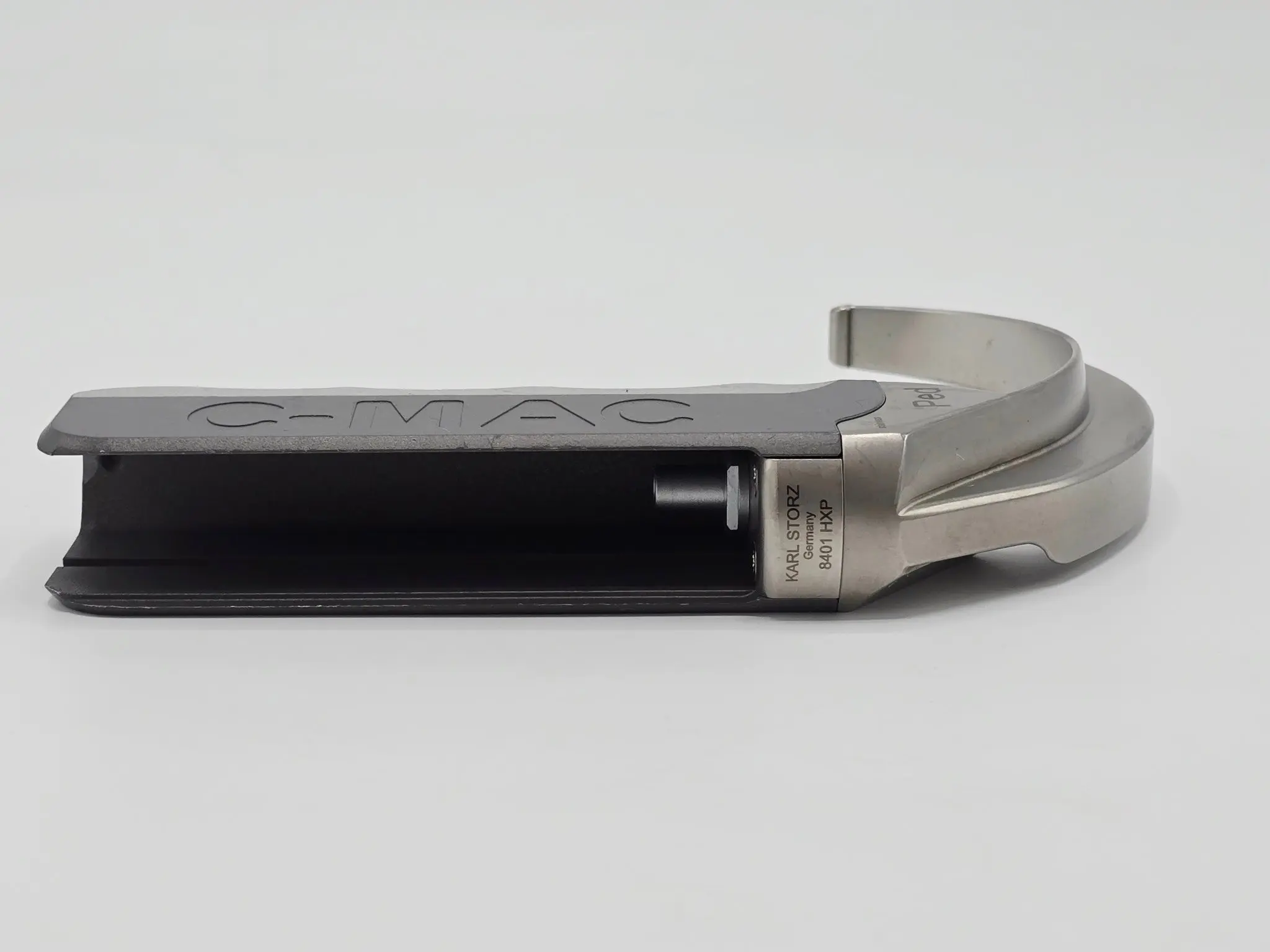

• Mechanical Function: The C-MAC handle interface and stainless steel blade are well-maintained, showing minimal signs of prior clinical use.

• Compatibility Note: This listing is for the 8401HXP blade/handpiece only. For operation, a compatible Karl Storz C-MAC® Monitor (e.g., 8403ZX or 8401XDK) and an electronic connecting cable (8401X or 8402X) are required.
